Products
Hybrid Mobile DVR/NVR
Vidistor
Compact HD Series
Full Hybrid DVR/NVR
Vidistor
Rail Compact Hybrid
8/16 Channel Mobile DVR with 1.5TB HD
Vidistor
IP66 Rail Pro Extreme
4/8/16 channel waterproof DVR
Vidistor
Rail Pro HD Hybrid
Realtime 4/10/16 Channel H.264 DVR

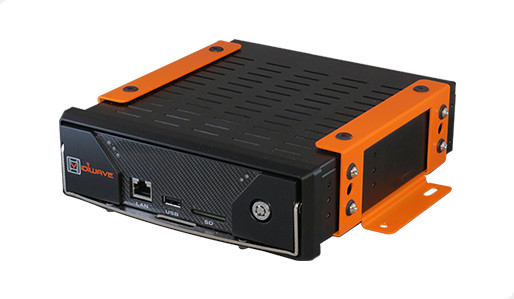

Vidistor Compact-HD
Full Hybrid Mobile DVR/NVR with GPS Tracking
The Ultra Compact single din chassis, makes this product easy to install and dashmountable in most auotmotive applications. Featuring GPS Tracking with Live Video, built shock protection and G-Force Sensing. Up to 25IPS Per camera. This robust well build product is at the forefront of space saving design. Feature packed with embedded linux operating system and up to 2TB of internal storage
Key Features
- Embedded Linux OS for reliability
- H.264 Compression for analogue cameras
- Compact 1DIN size with removable DVR dock design
- Dual Stream - Optimising network transfer speeds via WLAN and 3G
- User Friendly GUI - Flexible, Easy to use
- Advanced Remote Management Software integrates all video and CCTV diagnostics
- S.M.A.R.T: Self-Monitoring Analysis and Reporting Technology - via RMS
- Mobile Device Support: iPhone, Android
- Spot monitor output for in-vehicle display
- Audio recording: to support video evidence
- Built-in Vibration Protection
- Built-in Automotive Grade 12-24V PSU
- Built-in support for GPS tracking with video image live and playback
- Built in G-sensors via GPS for embedded playback with video

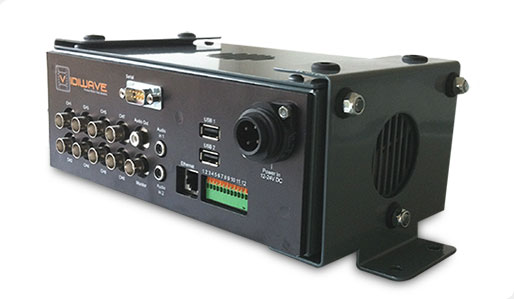

Vidistor Rail Compact Hybrid
8 Channel Mobile DVR with optional live GPS tracking
Straight from the Vidiwave Factory, we are pleased to offer the Vidistor Pro. This intelligent device features 1.5TB HD Storage, full H264 compression & full D1 resolution. Additional options include GPS Fleet Tracking, WLAN / 3G Management & Watermark image protection
Key Features
- Embedded Linux OS for reliability
- H.264 Compression for analogue cameras. MPEG4 / MJPEG / H.264 for IP cameras
- Dual Stream - Optimising network transfer speeds via WLAN and 3G
- User Friendly GUI - Flexible, Easy to use
- Advanced Remote Management Software integrates all video and CCTV diagnostics
- S.M.A.R.T: Self-Monitoring Analysis and Reporting Technology - via RMS
- Mobile Device Support: iPhone, Android
- Compatible with ONVIF IP cameras up to 2MP resolution
- Spot monitor output for in-vehicle display
- Audio recording: to support video evidence
- Built-in Vibration Protection
- Built-in Automotive Grade PSU and power distribution for cameras and Wireless

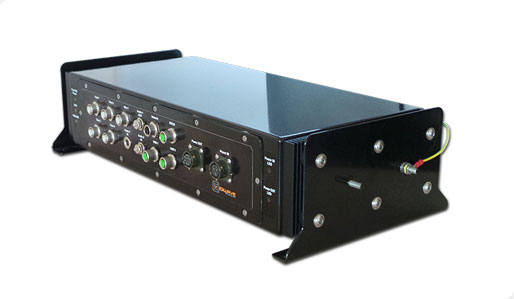

Vidistor IP66 Rail Pro Extreme
Realtime 4/8/16 channel H.264 DVR
Build to order, and to the specification you request, the OEM Range can be customised to feature the key elements you require. Featuring a customised enclosure with ODM Branding, Customisable hardware and software specification. Extended performance options, such as Rail T1 Temp or MIL-Spec Vibration. The Vidistor can be customised further with Branded Software & Packaging making this a truly white label product.
Key Features
- H.264 Compression (Main Profile)
- Real-time Recording at CIF quality (all channels)
- Selectable Record Quality & Frame Rate per camera / per mode (normal & alarm): CIF (D1), 2CIF and 4CIF supported
- Pentaplex Operation: (Supports Live / Record / Playback/ Transmit modes simultaneously)
- Dual Stream – Optimises Network SpeedS - 3G/WLAN
- Supports Full management and connectivity - 3G/WLAN
- Supports RS-232 or RS485 data Text Insertion as Meta tag
- Friendly Local Set-Up / Support Interface – USB/Bluetooth/2.4GHz mouse
- S.M.A.R.T (Self Monitoring Analysis & Reporting Technology)
- WCS (Watermark Check System) – Anti-Tamper for admissible evidence in court
- Waterproof IP66 construction for Rail and Marine Fleet
- Extreme Temperature Range (-40 ~ +75°C)
- Bespoke Internal Climate Control
- Customisable Mil and Rail spec connector panel
- Extreme vibration and temperature certified

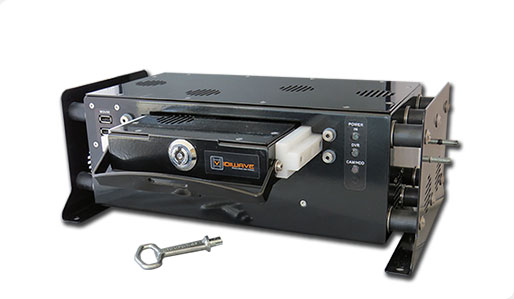

Vidistor Rail Pro HD Hybrid
Realtime 4/10/16 Channel H.264 Digital Video Recorder
Build to order, and to the specification you request, the OEM Range can be customised to feature the key elements you require. Featuring a customised enclosure with ODM Branding, Customisable hardware and software specification. Extended performance options, such as Rail T1 Temp or MIL-Spec Vibration. The Vidistor can be customised further with Branded Software & Packaging making this a truly white label product.
Key Features
- Removable DVR / HDD Dock
- 2-CH HD, 8-CH Analogue, realtime H.264 DVR with hexaplex operation – record, live, playback, backup, control, & remote access
- H.264 High Profile video compression/decompression with configurable quality
- Max record capabilities – HD: 720p 60/50, 1080p 60/50, Full-D1:240/200
- Max playback capabilities – HD: 720p 60/50, 1080p 35, Full-D1: 240/200
- Realtime live display for each channel
- Two-way audio capabilities
- Smart search & playback
- Playback rate up to 240/200 IPS
- Audio in * 12 / audio out * 2
- HDMI * 1, VGA * 1, Main monitor * 1, Call monitor * 1
- Up to 5 SATA HDDs, or 4 SATA HDDs and 1 DVD
- Alarm in * 16 / alarm out * 4, alarm set/unset, panic
- FCC, CE, e1, EN-50121 and EN-50155 certified
View all products in this range
