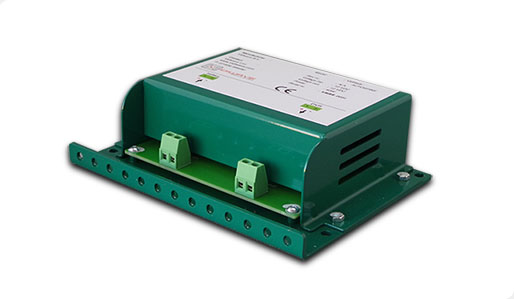

Vidisafe Autospike
Automotive power distribution unit for use with Vidistor Compact DVR
This unique technology features permanent electrical spike monitoring, postive and negative earth fault protection. This product powers and protects CCTV Cameras, WLAN, 3G Modules & CCTV Monitors. This appliance is also EN-55022-06-A & FCC Part 15-B compliant.
Key Features
- PSU/PDU protection for 12VDC vehicles
- Permanent spike monitoring technology.
- Positive and Negative Earth fault protection.
- Thermal fuse, self-healing technology.
- Full reverse polarity protection.
- Easy-wire installation system.
- Built in cable protection / tie management.
- 12VDC 4 Amp output for ancillary devices.
- Powers, protects and isolates CCTV cameras.
- Powers, protects and isolates WLAN / 3G modules.
- Powers, protects and isolates CCTV monitors.
- EN-55022-06-A & FCC Part 15-B compliant.

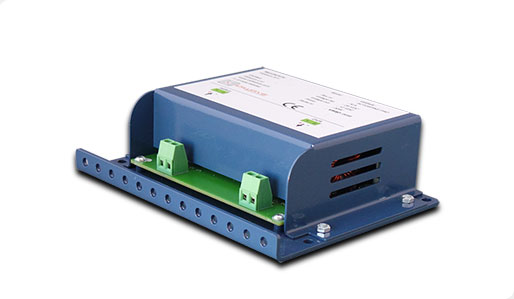

Vidisafe Autospike Pro
Automotive power distribution unit for use with Vidistor Compact DVR
This unique technology features permanent electrical spike monitoring, positive and negative earth fault protection. This product powers and protects CCTV Cameras, WLAN, 3G Modules & CCTV Monitors. This appliance is also EN-55022-06-A & FCC Part 15-B compliant.
Key Features
- PSU/PDU protection for 24VDC vehicles
- Permanent spike monitoring technology.
- Positive and Negative Earth fault protection.
- Thermal fuse, self-healing technology.
- Full reverse polarity protection.
- Easy-wire installation system.
- Built in cable protection / tie management.
- 12VDC 4 Amp output for ancillary devices.
- Powers, protects and isolates CCTV cameras.
- Powers, protects and isolates WLAN / 3G modules.
- Powers, protects and isolates CCTV monitors.
- EN-55022-06-A & FCC Part 15-B compliant.

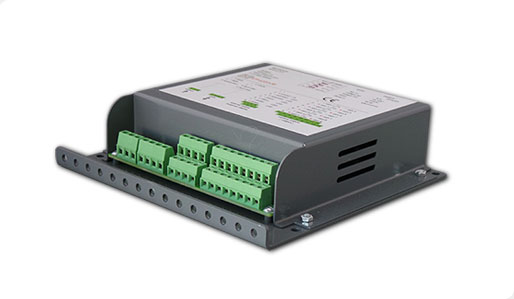

VidiSafe Compact Pro
Automotive power distribution unit for use with Vidistor Compact DVR
This unique technology features permanent electrical spike monitoring, positive and negative earth fault protection. This product powers and protects CCTV Camera, WLAN, 3G Modules & CCTV Monitors. This appliance is also EN-55022-06-A & FCC Part 15-B compliant
Key Features
- Wide Range PSU/PDU protection for 12VDC and 24VDC vehicles
- Permanent spike monitoring technology
- Positive and Negative Earth fault protection
- Thermal fuse, self-healing technology
- Full reverse polarity protection
- Easy-wire installation system
- 12VDC 7.5 Amp output for ancillary devices
- Powers, protects and isolates CCTV cameras
- Powers, protects and isolates WLAN / 3G modules
- Powers, protects and isolates CCTV monitors
- EN-55022-06-A & FCC Part 15-B compliant

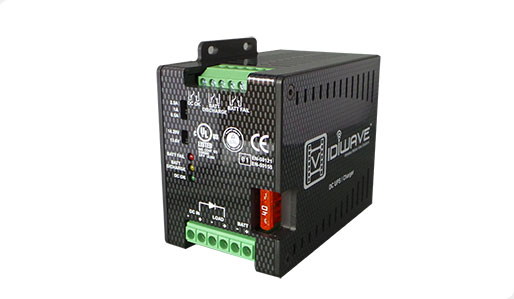

VidiSafe UPS / Charger
140 Watt Rail DC/DC UPS / Charger with 12VDC input and 13.8VDC Output
Key Features
- Compact Size
- Rugged Industrial Quality Chassis
- Power Output and Float Charge for Battery Back-up
- Adjustable Low-voltage operation
- Built-in Low battery disconnect protection circuit
- Low Battery - Alarm Output
- Charger Fail - Alarm Output
- Rail Standards Certification
- 4 ~ 24 hour Battery Back-up (depending on battery option selected)

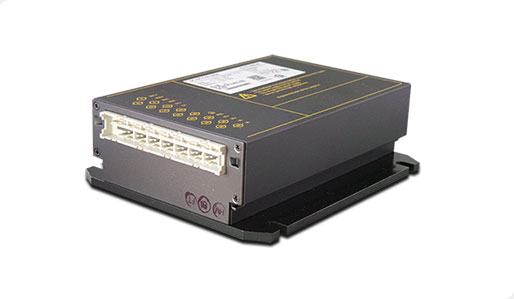

VidiSafe DC-DC Converter
Incorporates all necessary input/output, signalling and protection features
Key Features
- Extremely wide input voltage range from 12 - 168VDC in the same model
- RoHS compliant
- Class I equipment
- Input over and programmable under voltage lockout
- Shutdown function
- Inrush current limitation
- 10 ms hold-up time
- Very high efficiency up to 94%
- Immunity according to IEC 61000-4-2, -3, -4, -5, -6
- ALL PCBs protected by lacquer

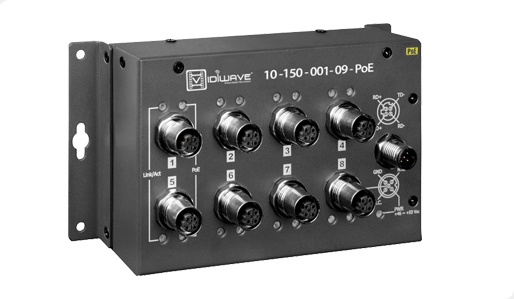

8 Port M12 Unmanaged PoE Switch
Key Features
- Each port supports both 10/100 Mbps speed auto negotiation
- 8 PoE ports with Power Sourcing Equipment (PSE) operation
- Over-temperature, over-current and over/under-voltage detection
- 8-port 10/100 Mbps M12 type connector with IP40 protection
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- EN50155/50121-3-2/50121-4, and NEMA TS2 compliant
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture
- Auto-detection of PD and automatic power management
- Supports operating temperatures from -40 °C ~ +75 °C

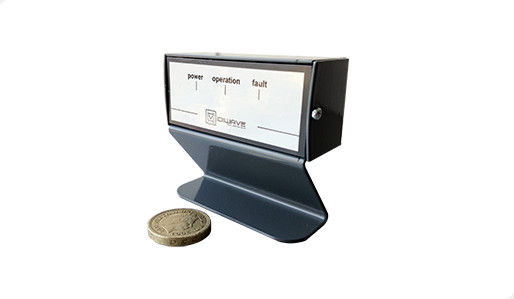

Drivers LED System Health Indicator
The Vidi-Safe LED health indicator is designed to provide a clear, visual confirmation of the complete CCTV system health to
the driver, before he/she takes the vehicle into service.
It is a low-cost alternative to our automated remote vehicle diagnostics package using Vidiwave’s WIMS (Wireless Integrated
Management System) via 3G or WLAN.
This simple compact module allows the driver to have complete peace of mind that the vehicle CCTV is fully operational, providing
protection to staff and passengers throughout the day (and night).
Should an error occur, a fault light will light to alert the driver that the system needs an engineer to investigate the fault log of
the NVR and investigate to repair the system. The log will accurately report the fault in detail to facilitate a quick fix and return
to full operation.
Key Features
- Provides an Instant, simple visual health diagnostics
- Reports the health of all the complete CCTV system
- Checks CCTV systems - Cameras / HDD's / NVR health and DC Power.
- Compact Design - Dashboard and A-pillar mountable
- Rugged construction
