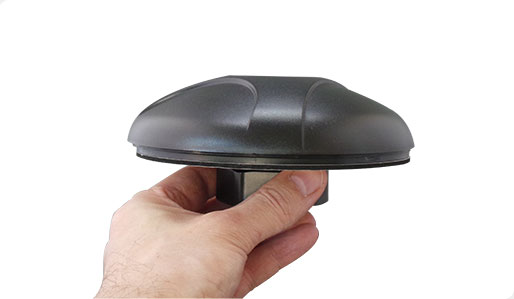

WLAN / 3G / GPS Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Key Features
- Single antenna provides cellular / WLAN + GPS for tracking
- IP67 rated
- High impact ABS plastic for long-life / durability
- Low profile - To reduce gauge increase considerations
- Vehicle wash proof
- Fully isolated from chasis earth faults
- RoHS Compliant

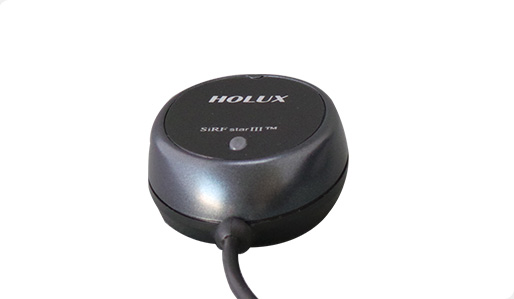

WIMS GPS Receiver
Key Features
- Ultra Compact size – Ideal for discrete / non invasive installations
- Built on hi-end SiRF Star III Chipset
- Embedded ARM 7TDMI CPU
- 20 Parallel satellite tracking channels - for ultra-fast acquisition and reacquisition
- 200,000 simultaneous effective correlation – for fast TTFF (Time-To-Fast-Fix)
- Extremely fast TTFF at low signal levels
- Built-in hardware based Tracking Loop detector – with WAAS / EGNOS demodulator support
- Built-in Lithium-ion battery for TTFF – rechargeable
- Full support of NMEA 0183 V2.2 data protocol
- Enhanced tracking algorithms – to provide superior navigation in urban / canyon and foliage environments
- LED indicates power on/off and Navigation update
DVR GPS Receiver
Key Features
- Ultra Compact size – Ideal for discrete / non invasive installations
- Built on hi-end SiRF Star III Chipset
- Embedded ARM 7TDMI CPU
- 20 Parallel satellite tracking channels - for ultra-fast acquisition and reacquisition
- 200,000 simultaneous effective correlation – for fast TTFF (Time-To-Fast-Fix)
- Extremely fast TTFF at low signal levels
- Built-in hardware based Tracking Loop detector – with WAAS / EGNOS demodulator support
- Built-in Lithium-ion battery for TTFF – rechargeable
- Full support of NMEA 0183 V2.2 data protocol
- Enhanced tracking algorithms – to provide superior navigation in urban / canyon and foliage environments
- LED indicates power on/off and Navigation update

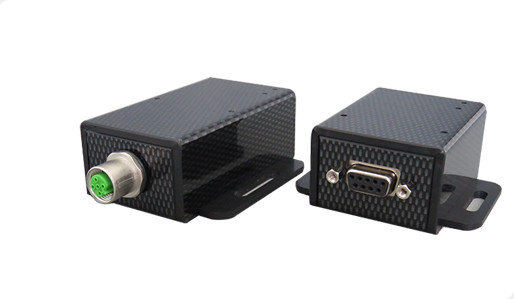

DVR In-line GPS Receiver
Key Features
- 65 Channel GPS L1 C/A Code
- Perform 8 million time-frequency hypothesis testing per second
- Open sky hot start 1 sec, cold start 29 sec
- Signal detection better than -161dBm
- Multipath detection and suppression
- Accuracy 2.5m CEP
- Maximum update rate 10Hz
- Tracking current ~23mA
- Provides a 10pin header to easily connect to PCB
- 5m CEP Accuracy
- RoHS compliance
- M12 connector for rolling stock regulation compliant

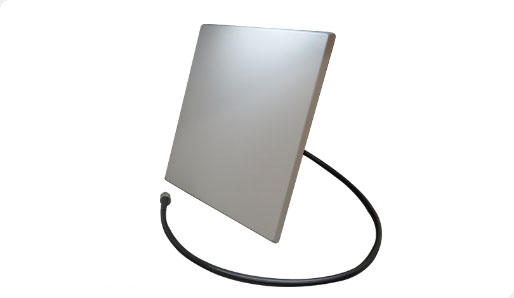

23dBi Depot Antenna

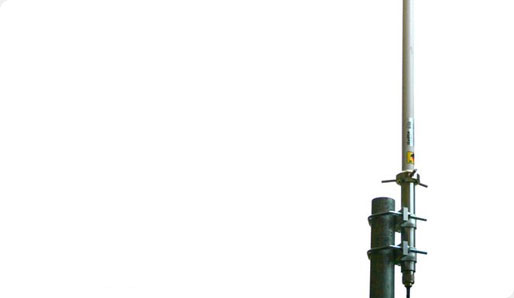

12dBi Omnidirectional Depot Antenna
