Products
Mobile Digital Recorders
Vidistor
Compact
8 Channel Mobile DVR with 1000GB HD
Vidistor
Rail Compact
8/16 Channel Mobile DVR with 1500GB HD
Vidistor
Rail Professional
8/16 Channel Mobile DVR with 1500GB HD
Vidistor
HD-SDI 4 Channel
Realtime 4 channel H.264 DVR
Vidistor
HSD-SDI Hybrid
Realtime 10 channel H.264 DVR
Vidistor
IP66 Extreme
4/8/16 channel waterproof DVR
Vidistor Compact
8 Channel Mobile DVR with GPS Tracking
The Ultra Compact single din chassis, makes this product easy to install and dashmountable in most auotmotive applications. Featuring GPS Tracking with Live Video, built shock protection and G-Force Sensing. Up to 25IPS Per camera. This robust well build product is at the forefront of space saving design. Feature packed with embedded linux operating system and 1000GB of internal storage
Key Features
- Embedded Linux OS for reliability
- H.264 Compression for analogue cameras
- Compact 1DIN size with removable DVR dock design
- Dual Stream - Optimising network transfer speeds via WLAN and 3G
- User Friendly GUI - Flexible, Easy to use
- Advanced Remote Management Software integrates all video and CCTV diagnostics
- S.M.A.R.T: Self-Monitoring Analysis and Reporting Technology - via RMS
- Mobile Device Support: iPhone, Android
- Spot monitor output for in-vehicle display
- Audio recording: to support video evidence
- Built-in Vibration Protection
- Built-in Automotive Grade 12-24V PSU
- Built-in support for GPS tracking with video image live and playback
- Optional G-sensors GPS for embedded
Vidistor Rail Compact
8 Channel Mobile DVR with optional live GPS tracking
Straight from the Vidiwave Factory, we are pleased to offer the Vidistor Pro. This intelligent device features 1500GB HD Storage, full H264 compression & full D1 resolution. Additional options include GPS Fleet Tracking, WLAN / 3G Management & Watermark image protection
Key Features
- Embedded Linux OS for reliability
- H.264 Compression for analogue cameras. MPEG4 / MJPEG / H.264 for IP cameras
- Dual Stream - Optimising network transfer speeds via WLAN and 3G
- User Friendly GUI - Flexible, Easy to use
- Advanced Remote Management Software integrates all video and CCTV diagnostics
- S.M.A.R.T: Self-Monitoring Analysis and Reporting Technology - via RMS
- Mobile Device Support: iPhone, Android
- Compatible with most major brands of IP camera up to 1.3 Megapixel
- Spot monitor output for in-vehicle display
- Audio recording: to support video evidence
- Built-in Vibration Protection
- Built-in Automotive Grade PSU and power distribution for cameras and Wireless

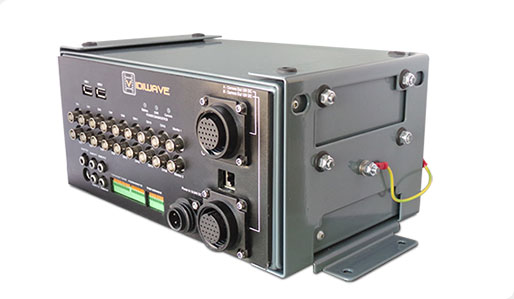

Vidistor Rail Professional
Ruggedised mobile 8 channel DVR with optional live GPS tracking
Straight from the Vidiwave Factory, we are pleased to offer the Vidistor Pro. This intelligent device features 1500GB HD Storage, full H264 compression & full D1 resolution. Additional options include GPS Fleet Tracking, WLAN / 3G Management & Watermark image protection. Fully Certified to EU Rail
Key Features
- Embedded Linux OS for reliability
- H.264 Compression for analogue cameras. MPEG4 / MJPEG / H.264 for IP cameras
- Hybrid Platform - Mix analogue and IP
- Dual Stream - Optimising network transfer speeds via WLAN and 3G
- User Friendly GUI - Flexible, Easy to use
- Advanced Remote Management Software integrates all video and CCTV diagnostics
- S.M.A.R.T: Self-Monitoring Analysis and Reporting Technology - via RMS
- Mobile Device Support: iPhone, Android
- Compatible with most major brands of IP camera up to 1.3 Megapixel
- Spot monitor output for in-vehicle display
- Audio recording: to support video evidence
- Built-in Vibration Protection
- Built-in Automotive Grade PSU and power distribution for cameras and Wireless
- Fully Compliant with EN-50121 and EN-50155
Vidistor HD-SDI 4 Channel
Realtime 4 channel H.264 DVR
Up to 4x 2 Megapixel IP Camera's supported, featuring H264 Compression and full D1 Resolution. Including GPS Fleet Vehicle tracking, WLAN /3G Management & Vehicle ODB-1/2/e Diagnostics Option.
Key Features
- Removable DVR / HDD Dock
- 4-CH HD, realtime H.264 DVR with hexaplex operation – record, live, playback, backup, control, & remote access
- H.264 High Profile video compression/decompression with configurable quality
- Max record capabilities – HD: 720p 120/100, 1080p120/100
- Max playback capabilities – HD: 720p 120/100, 1080p 75
- Realtime live display for each channel
- Two-way audio capabilities
- Smart search & playback
- Playback rate up to 240/200 IPS
- Audio in * 8 / audio out * 2
- HDMI * 1, VGA * 1, Main monitor * 1, Call monitor * 1
- Up to 5 eSATA HDDs
- Alarm in * 16 / alarm out * 4, alarm set/unset, panic
- Full rail & automotive type approvals
- W x H x D = 380mm x 145mm x 195mm
Vidistor HD-SDI 10 Channel
Realtime 10 channel H.264 DVR
Build to order, and to the specification you request, the OEM Range can be customised to feature the key elements you require. Featuring a customised enclosure with ODM Branding, Customisable hardware and software specification. Extended performance options, such as Rail T1 Temp or MIL-Spec Vibration. The Vidistor can be customised further with Branded Software & Packaging making this a truly white label product.
Key Features
- Removable DVR / HDD Dock
- 2-CH HD, 8-CH Analog, realtime H.264 DVR with hexaplex operation – record, live, playback, backup, control, & remote access
- H.264 High Profile video compression/decompression with configurable quality
- Max record capabilities – HD: 720p 60/50, 1080p 60/50, Full-D1:240/200
- Max playback capabilities – HD: 720p 60/50, 1080p 35, Full-D1: 240/200
- Realtime live display for each channel
- Two-way audio capabilities
- Smart search & playback
- Playback rate up to 240/200 IPS
- Audio in * 12 / audio out * 2
- HDMI * 1, VGA * 1, Main monitor * 1, Call monitor * 1
- Up to 5 SATA HDDs, or 4 SATA HDDs and 1 DVD
- Alarm in * 16 / alarm out * 4, alarm set/unset, panic
- Full rail and automotive type approvals
- W x H x D = 380mm x 145mm x 195mm
Vidistor IP66 Extreme
Realtime 10 channel H.264 DVR
Build to order, and to the specification you request, the OEM Range can be customised to feature the key elements you require. Featuring a customised enclosure with ODM Branding, Customisable hardware and software specification. Extended performance options, such as Rail T1 Temp or MIL-Spec Vibration. The Vidistor can be customised further with Branded Software & Packaging making this a truly white label product.
Key Features
- H.264 Compression (Main Profile)
- Real-time Recording at CIF quality (all channels)
- Selectable Record Quality & Frame Rate per camera / per mode (normal & alarm): CIF (D1), 2CIF and 4CIF supported
- Pentaplex Operation: (Supports Live / Record / Playback/ Transmit modes simultaneously)
- Dual Stream – Optimises Network SpeedS - 3G/WLAN
- Supports Full management and connectivity - 3G/WLAN
- Supports RS-232 or RS485 data Text Insertion as Meta tag
- Friendly Local Set-Up / Support Interface – USB/Bluetooth/2.4GHz mouse
- S.M.A.R.T (Self Monitoring Analysis & Reporting Technology)
- WCS (Watermark Check System) – Anti-Tamper for court admissibility
- Waterproof IP66 construction for Rail and Marine Fleet
- Extreme Temperature Range (-40 ~ +75°C)
- Bespoke Internal Climate Control
- Customisable Mil and Rail spec connector panel
- Extreme vibration and temperature certified
View all products in this range
